Climate Change – perspective is not a dirty word

Climate Change – perspective is not a dirty word

Highlights of this short article

·       Ice core data indicating minimal anthropogenic global warming.

·       A better perspective on the climate change “accepted” narrative.

We are all familiar with the climate change scare narrative. Red coloured maps of the globe, polar bears stranded on ever diminishing ice floes, extreme weather events etc. When you read a climate change related article or scientific paper it nearly always opens with a statement underlining the severity of the situation facing mankind. What is usually lacking is perspective.

I am not interested in “expert” opinion unless it is supported by empirical data and perspective. Selected sources must be reliable and have ample past data to encompass solar cycle variation. Ideally this data needs to come from a region of the planet that is sensitive to global warming. What data from the world of paleoclimatology fits that criteria?

When snow falls, it contains a mix of oxygen isotopes. During warm periods, more heavy oxygen isotopes are found in the snow, while cold periods have more light oxygen isotopes. By analysing these ratios in ice cores, scientists can learn about past temperatures and climate conditions. The ice is laid down in annual layers which can be dated accurately. Consequently, we can construct an accurate temperature record where sufficient ice accumulation exists, such as in polar regions.

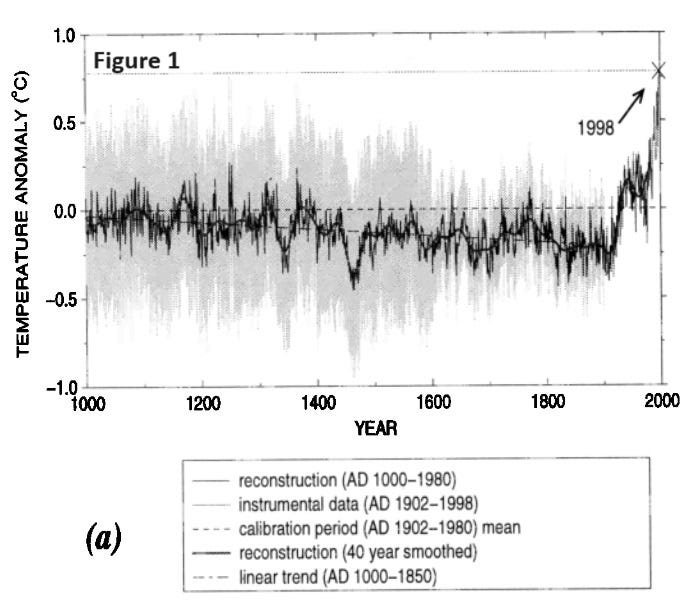

If anthropogenic climate change is a real threat, due primarily to the burning of fossil fuels, then we are expecting to see a clear rise in temperature above beyond the normal variation. This was attempted and published by Michael Mann et al ⁽¹⁾ and is widely known as the hockey stick graph. The main problem with this graph is that it was constructed using twelve sets of proxy measurements which included three sets of ice core data. The ice core data went back only 500 years and the remaining extrapolation relied on tree ring data. There was considerable uncertainty of measurement which was highlighted in his original paper (Fig 1) and a period 1000 years provides us with limited perspective in relation to the impact of solar cycles.

Note the light grey area is an estimate of the uncertainty of measurement / extrapolation.

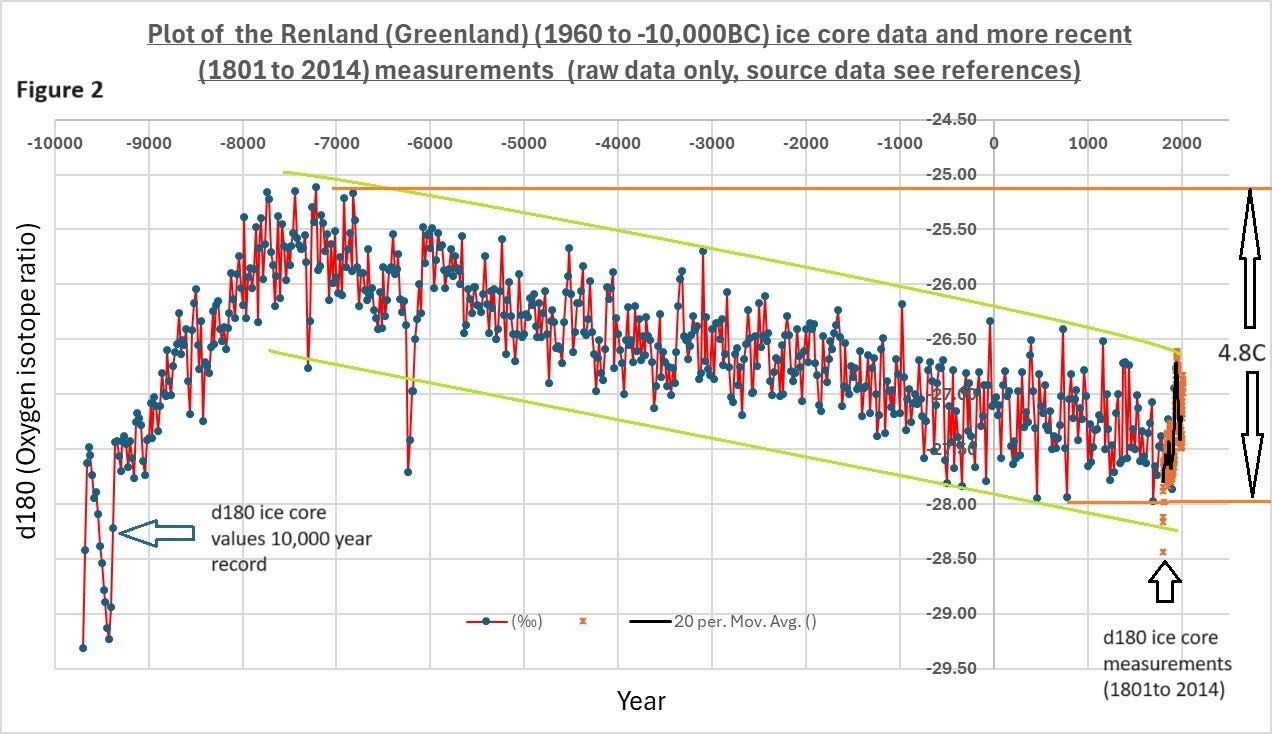

There seems to be a dearth of records that provide temperature proxies for recent times that are relevant to the sudden rise in carbon dioxide levels (1860 to current). However, I did locate data from two overlapping periods from Renland peninsula in Eastern Greenland. The two studies that reported the results from these ice core measurements had quite different themes. The first, ⁽²⁾ which covered the period from 1960 to 10,000 BC, commented on the high temperatures in the Holocene period and the impact on the ice sheet. The second ⁽³⁾ covering 1801 to 2014 examined local site variability. The creation of these data sets was a gargantuan effort. It remains a mystery why these papers did not comment on the temperature trends or indeed try and link the two data sets? Below is a graph combining these two isotope ratio data sets (Fig 2). The black line (far right) is the key as it is a twenty year rolling average of the more recent date set (brown dots). The first data set (blue dots) has data points every twenty years so this rolling average enables a more valid comparison.

This data tells us we're in one of the coldest spells in the approximately the last 9,000 years. Was the only way up? Virtually all global records indicate a steady warming in recent times.

I have added green lines to help visualise the “normal” variation in the last 9000 years.

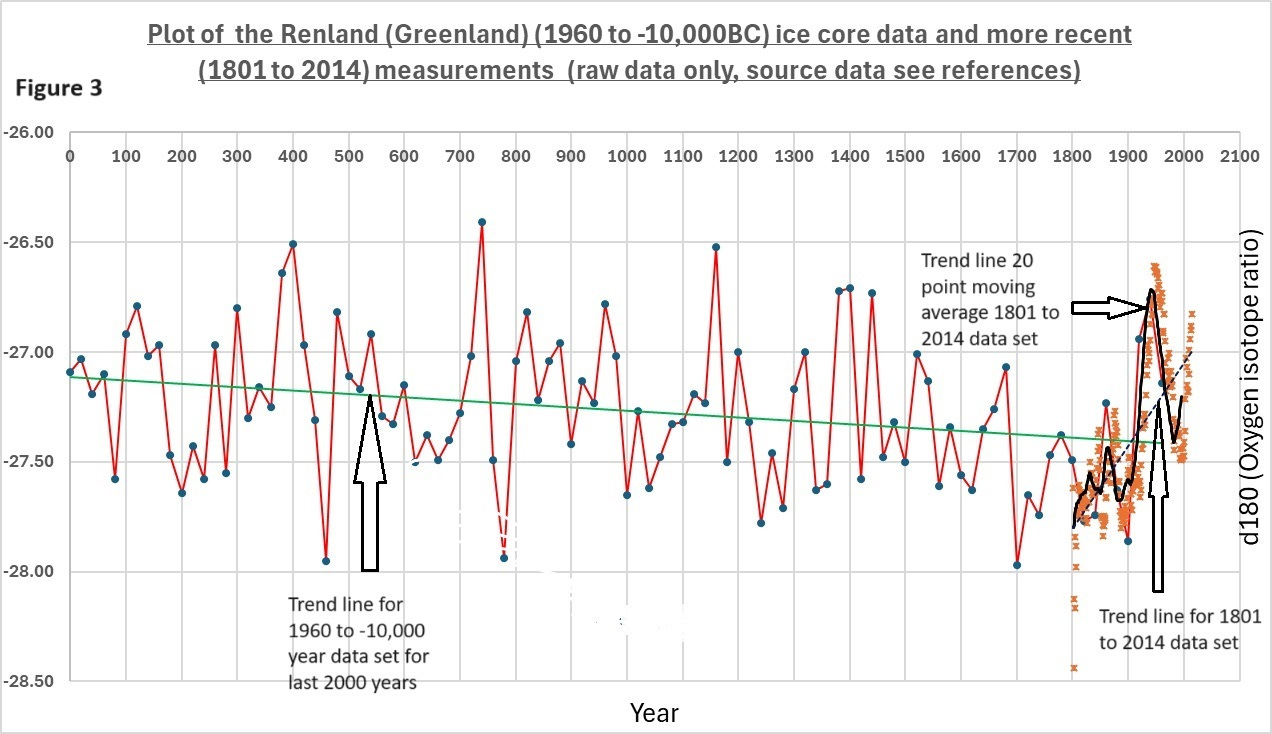

I have added another graph (Fig 3) with linear trend lines to each of the data sets to demonstrate how important perspective is in assessing climate change. If we take the trend from 1801 to 2014 (purple dashed) and compare it with that from the last 10,000 years (green line) it is truly alarming. But the reader can see that recent variation from both sets of data is quite normal.

There is also a serious lack of agreement between the Mann hockey stick graph (Fig 1) and these data. It should be borne in mind when making this comparison that the Mann graph attempted to reconstruct temperatures in the Northern Hemisphere whereas the data I have cited here is from a specific area of Eastern Greenland.

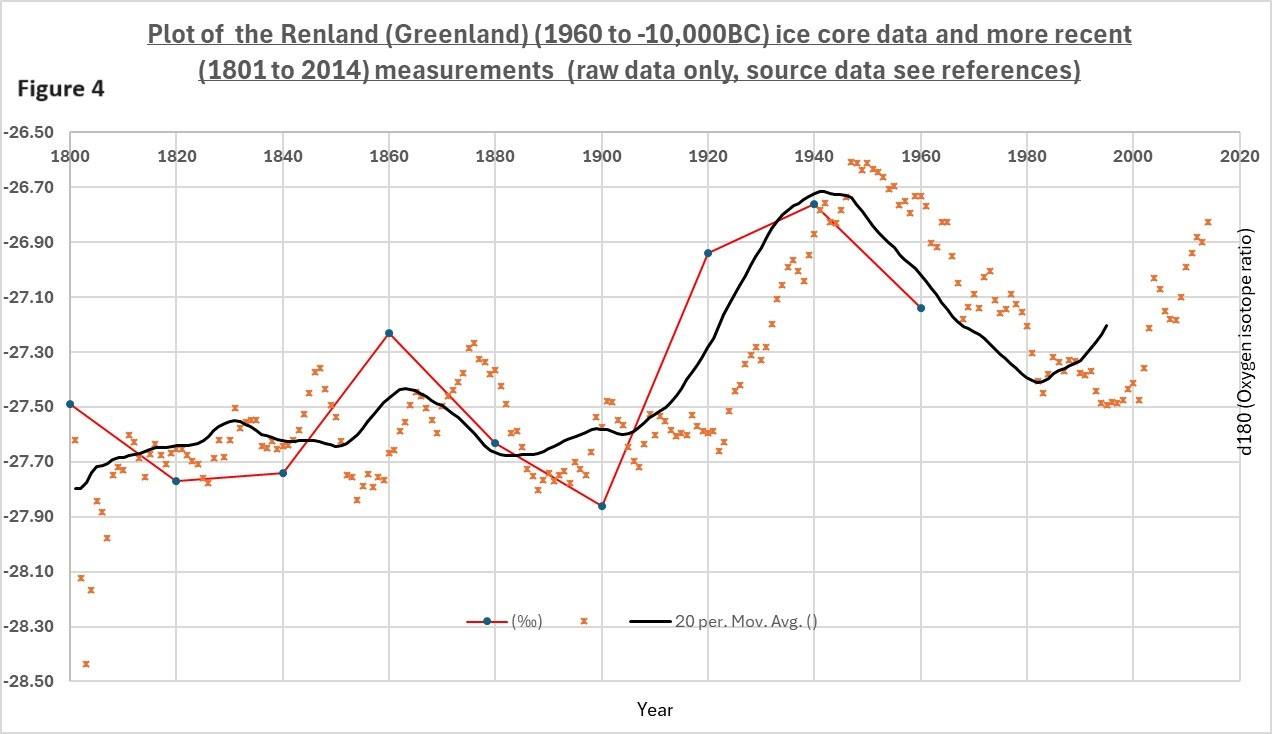

The next graph (Fig 4), focusing on the overlap period (1800 to 2014), provides the degree of validity of aligning these two data sets. There appears to be excellent correlation when comparing the black and red lines.

In summary this data indicates there is no significant global warming signal coming from one of the most sensitive parts of the planet. Any warming may be latent, but this seems bit of a stretch.

This absence of a signal could be explained by the fact that the relationship of carbon dioxide to global temperature is logarithmic and above a certain concentration there is minimal impact relative to solar cycles.

There are many climate scientists who have devoted their lives to saving mankind but unless this data is invalid, they need to return from the chill winds of the polar regions. Is it game over for the climate change scare narrative?

References

(1)  Northern hemisphere temperatures during the past millennium: Inferences, uncertainties, and limitations:

Northern hemisphere temperatures during the past millennium: Inferences, uncertainties, and limitations (wiley.com)

(2)  Holocene thinning of the Greenland ice sheet:

https://www.researchgate.net/publication/26817271_Holocene_thinning_of_the_Greenland_ice_sheet

(3)  Varying regional δ18O–temperature relationship in high-resolution stable water isotopes from east Greenland:

CP - Varying regional δ18O–temperature relationship in high-resolution stable water isotopes from east Greenland (copernicus.org)

Data source for graphs:

1801-2014 Renland stack data:

Data - icesamples - software – University of Copenhagen (ku.dk)

1960 to 10,000 year Renland data:

ncei.noaa.gov/pub/data/paleo/icecore/greenland/vinther2009greenland.txt

.
